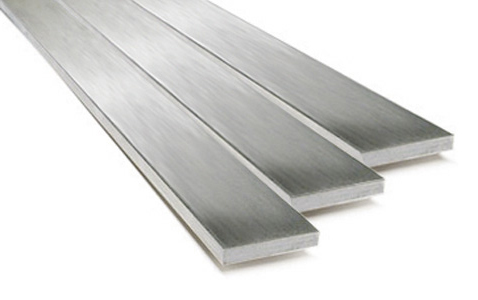

Solera de Aluminio
| Clave Producto | Espesor (Pulgadas) | Ancho (Pulgadas) | Espesor (mm) | Ancho (mm) | Peso Aprox (m) | Peso Aprox (pieza) |
|---|---|---|---|---|---|---|
| AS2B00010002Y | 1 | 2 | 25.4 | 50.8 | 3.497 | 12.799 |
| AS2B00010003Y | 1 | 3 | 25.4 | 76.2 | 5.245 | 19.197 |
| AS2B00010004Y | 1 | 4 | 25.4 | 101.6 | 6.994 | 25.598 |
| AS2B00010005Y | 1 | 5 | 25.4 | 127 | 8.742 | 31.99572 |
| AS2B00010006Y | 1 | 6 | 25.4 | 152.4 | 10.49 | 38.393 |
| AS2B00120001Y | 1/2 | 1 | 12.7 | 25.4 | 0.874 | 3.199 |
| AS2B00120002Y | 1/2 | 2 | 12.7 | 50.8 | 1.748 | 6.398 |
| AS2B00120003Y | 1/2 | 3 | 12.7 | 76.2 | 2.622 | 9.597 |
| AS2B00120004Y | 1/2 | 4 | 12.7 | 101.6 | 3.497 | 12.799 |
| AS2B00120006Y | 1/2 | 6 | 12.7 | 152.4 | 5.245 | 19.197 |
| AS2B00120112Y | 1/2 | 1 1/2 | 12.7 | 38.1 | 1.312 | 4.801 |
| AS2B00120212Y | 1/2 | 2 1/2 | 12.7 | 63.5 | 2.185 | 7.9971 |
| AS2B00140001Y | 1/4 | 1 | 6.4 | 25.4 | 0.437 | 1.599 |
| AS2B00140002Y | 1/4 | 2 | 6.4 | 50.8 | 0.874 | 3.199 |
| AS2B00140003Y | 1/4 | 3 | 6.4 | 76.2 | 1.312 | 4.801 |
| AS2B00140004Y | 1/4 | 4 | 6.4 | 101.6 | 1.748 | 6.398 |
| AS2B00140012Y | 1/4 | 1/2 | 6.4 | 12.7 | 0.219 | 0.8 |
| AS2B00140034Y | 1/4 | 3/4 | 6.4 | 19 | 0.328 | 1.2 |
| AS2B00140058Y | 1/4 | 5/8 | 6.4 | 15.9 | 0.273 | 0.999 |
| AS2B00140112Y | 1/4 | 1 1/2 | 6.4 | 38.1 | 0.656 | 2.401 |
| AS2B00140114Y | 1/4 | 1 1/4 | 6.4 | 31.4 | 0.546 | 1.998 |
| AS2B00140134Y | 1/4 | 1 3/4 | 6.4 | 44.4 | 0.765 | 2.8 |
| AS2B00140212Y | 1/4 | 2 1/2 | 6.4 | 63.5 | 1.093 | 4 |
| AS2B00180001Y | 1/8 | 1 | 3.2 | 25.4 | 0.219 | 0.802 |
| AS2B00180002Y | 1/8 | 2 | 3.2 | 50.8 | 0.437 | 1.6 |
| AS2B00180003Y | 1/8 | 3 | 3.2 | 76.2 | 0.656 | 2.4 |
| AS2B00180012Y | 1/8 | 1/2 | 3.2 | 12.7 | 0.109 | 0.399 |
| AS2B00180034Y | 1/8 | 3/4 | 3.2 | 19 | 0.164 | 0.6 |
| AS2B00180038Y | 1/8 | 3/8 | 3.2 | 9.52 | 0.082 | 0.3 |
| AS2B00180058Y | 1/8 | 5/8 | 3.2 | 15.9 | 0.136 | 0.498 |
| AS2B00180112Y | 1/8 | 1 1/2 | 3.2 | 38.1 | 0.328 | 1.2 |
| AS2B00180114Y | 1/8 | 1 1/4 | 3.2 | 31.7 | 0.273 | 0.999 |
| AS2B00180134Y | 1/8 | 1 3/4 | 3.2 | 44.4 | 0.383 | 1.398 |
| AS2B00380001Y | 3/8 | 1 | 9.5 | 25.4 | 0.656 | 2.401 |
| AS2B00380002Y | 3/8 | 2 | 9.5 | 50.8 | 1.312 | 4.801 |
| AS2B00380003Y | 3/8 | 3 | 9.5 | 76.2 | 1.967 | 7.203 |
| AS2B00380004Y | 3/8 | 4 | 9.5 | 101.6 | 2.623 | 9.6 |
| AS2B00380034Y | 3/8 | 3/4 | 9.5 | 19 | 0.492 | 1.801 |
| AS2B00380112Y | 3/8 | 1 1/2 | 9.5 | 38.1 | 0.983 | 3.598 |
| AS2B00380114Y | 3/8 | 1 1/4 | 9.5 | 31.7 | 0.82 | 3.0012 |
| AS2B00380212Y | 3/8 | 2 1/2 | 9.5 | 63.5 | 1.639 | 5.999 |
| AS2B01160001Y | 1/16 | 1 | 1.6 | 25.4 | 0.109 | 0.399 |
| AS2B01160012Y | 1/16 | 1/2 | 1.6 | 12.7 | 0.055 | 0.201 |
| AS2B01160034Y | 1/16 | 3/4 | 1.6 | 19 | 0.082 | 0.3 |
| AS2B03160001Y | 3/16 | 1 | 4.8 | 25.4 | 0.328 | 1.2 |
| AS2B03160002Y | 3/16 | 2 | 4.8 | 50.8 | 0.656 | 2.4 |
| AS2B03160003Y | 3/16 | 3 | 4.8 | 76.2 | 0.983 | 3.598 |
| AS2B03160012Y | 3/16 | 1/2 | 4.8 | 12.7 | 0.164 | 0.6 |
| AS2B03160034Y | 3/16 | 3/4 | 4.8 | 19 | 0.246 | 0.9 |
| AS2B03160058Y | 3/16 | 5/8 | 4.8 | 15.9 | 0.205 | 0.75 |
| AS2B03160112Y | 3/16 | 1 1/2 | 4.8 | 38.1 | 0.492 | 1.8 |
| AS2B03160114Y | 3/16 | 1 1/4 | 4.8 | 31.7 | 0.41 | 1.5 |
| AS2B03160134Y | 3/16 | 1 3/4 | 4.8 | 44.4 | 0.574 | 2.101 |
| AS2B03160212Y | 3/16 | 2 1/2 | 4.8 | 63.5 | 0.82 | 3.001 |
