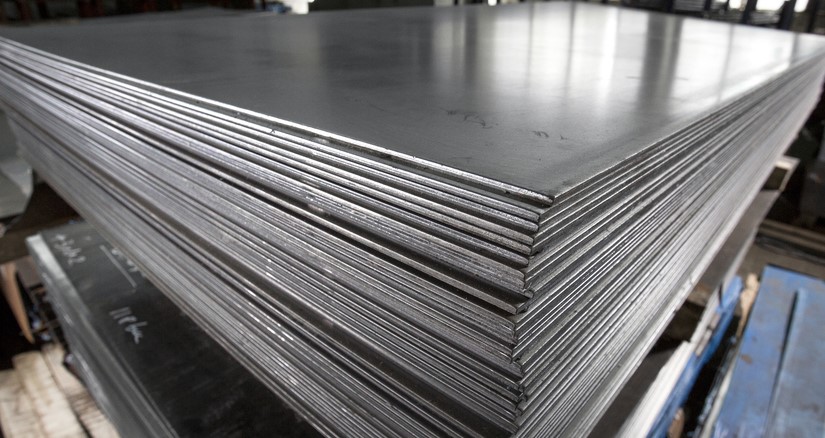

Placa de Acero Inoxidable
Aleación: T-304, T-316
Acabado: A1, L
| Clave Producto | Calibre (BWG) | Calibre (Inch) | Calibre (mm) | Dimensiones (Pies) | Dimensiones (metros) | Peso aprox (por hoja) | Peso aprox (por m2) |
|---|---|---|---|---|---|---|---|
| IPL1B0010038 | 10 | 0.135 | 3.43 | 3 x 8 | 0.91 x 2.44 | 62 | 27.95 |
| IPL1B0010310 | 10 | 0.135 | 3.43 | 3 x 10 | 0.91 x 3.05 | 78 | 27.95 |
| IPL1B0010410 | 10 | 0.135 | 3.43 | 4 x 10 | 1.22 x 3.05 | 104 | 27.95 |
| IPL1B001048 | 10 | 0.135 | 3.43 | 4 x 8 | 1.22 x 2.44 | 83.2 | 27.95 |
| IPL1B001410 | 1 | 1 | 25.4 | 4 x 10 | 1.22 x 3.05 | 784 | 210.75 |
| IPL1B01/2410 | 1/2 | 0.5 | 12.7 | 4 x 10 | 1.22 x 3.05 | 382 | 103 |
| IPL1B01/2520 | 1/2 | 0.5 | 12.7 | 5 x 20 | 1.22 x 3.05 | 956 | 103 |
| IPL1B01/4048 | 1/4 | 0.25 | 6.4 | 4 x 8 | 1.22 x 3.05 | 154 | 51.47 |
| IPL1B01/4410 | 1/4 | 0.25 | 6.4 | 4 x 10 | 1.22 x 3.05 | 191.5 | 51.47 |
| IPL1B01/4420 | 1/4 | 0.25 | 6.4 | 4 x 20 | 1.22 x 6.1 | 382 | 51.47 |
| IPL1B01/4510 | 1/4 | 0.25 | 6.4 | 5 x 10 | 1.52 x 3.05 | 239 | 51.47 |
| IPL1B01/4520 | 1/4 | 0.25 | 6.4 | 5 x 20 | 1.52 x 6.1 | 478 | 51.47 |
| IPL1B03/4410 | 3/4 | 0.75 | 19.1 | 4 x 10 | 1.22 x 3.05 | 573 | 154.03 |
| IPL1B03/4420 | 3/4 | 0.75 | 19.1 | 4 x 20 | 1.22 x 6.1 | 1146 | 154.03 |
| IPL1B03/8410 | 3/8 | 0.375 | 9.5 | 4 x 10 | 1.22 x 3.05 | 287 | 77.15 |
| IPL1B03/8510 | 3/8 | 0.375 | 9.5 | 5 x 10 | 1.52 x 3.05 | 358 | 77.15 |
| IPL1B3/16038 | 3/16 | 0.188 | 4.76 | 3 x 8 | 1.22 x 3.05 | 85 | 39.247 |
| IPL1B3/16310 | 3/16 | 0.188 | 4.76 | 3 x 10 | 1.22 x 3.05 | 106 | 39.247 |
| IPL1B3/16410 | 3/16 | 0.188 | 4.76 | 4 x 10 | 1.22 x 3.05 | 146 | 39.247 |
| IPL1B3/16420 | 3/16 | 0.188 | 4.76 | 4 x 20 | 1.22 x 6.1 | 287 | 39.247 |
| IPL1B3/16510 | 3/16 | 0.188 | 4.76 | 5 x 10 | 1.52 x 3.05 | 179 | 39.247 |
| IPL1B3/16520 | 3/16 | 0.188 | 4.76 | 5 x 20 | 1.52 x 6.1 | 359 | 39.247 |
| IPL1B5/16410 | 5/16 | 0.312 | 7.9 | 4 x 10 | 1.22 x 3.05 | 232 | 64.4 |
| IPL1B5/16420 | 5/16 | 0.312 | 7.9 | 4 x 20 | 1.22 x 6.1 | 478 | 64.4 |
| IPL1B5/16510 | 5/16 | 0.312 | 7.9 | 5 x 10 | 1.52 x 3.05 | 299 | 64.4 |
| IPL1B5/16520 | 5/16 | 0.312 | 7.9 | 5 x 20 | 1.52 x 6.1 | 597 | 64.4 |
| IPL1B5/32410 | 5/32 | 0.156 | 3.97 | 4 x 10 | 1.22 x 3.05 | 130 | 34.93 |
