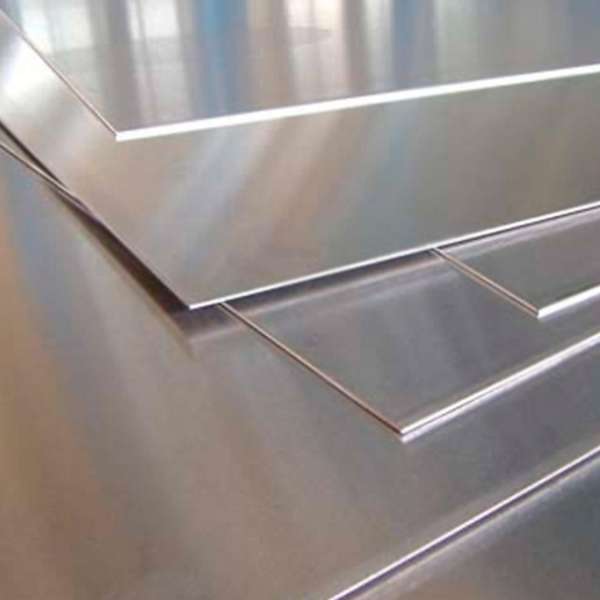

Lámina de Acero Inoxidable
Aleación: T-304, T-316, T-430
Acabado: 2B, P3, L, BA
Ficha Técnica T 304 Ficha Técnica T 430 Ficha Técnica T 316
Clave Producto Calibre (BWG) Calibre (Inch) Calibre (mm) Dimensiones (Pies) Dimensiones (metros) Peso aprox (por hoja) Peso aprox (por m2)
ILL1B0011310 11 0.12 3.048 3 x 10 0.91 x 3.05 73 26.34
ILL1B0011410 11 0.12 3.048 4 x 10 1.22 x 3.05 98 26.34
ILL1B0011420 11 0.12 3.048 4 x 20 1.22 x 3.05 196 26.34
ILL1B0012038 12 0.105 2.67 3 x 8 0.91 x 2.44 49 21.77
ILL1B0012048 12 0.105 2.67 4 x 8 1.22 x 2.44 64.8 21.77
ILL1B0012310 12 0.105 2.67 3 x 10 0.91 x 3.05 61 21.77
ILL1B0012410 12 0.105 2.67 4 x 10 1.22 x 3.05 81 21.77
ILL1B0014038 14 0.074 1.9 3 x 8 0.91 x 2.44 35 15.59
ILL1B0014048 14 0.074 1.9 4 x 8 1.22 x 2.44 46.4 15.59
ILL1B0014310 14 0.074 1.9 3 x 10 0.91 x 3.05 43 15.59
ILL1B0014410 14 0.074 1.9 4 x 10 1.22 x 3.05 58 15.59
ILL1B0016038 16 0.061 1.56 3 x 8 0.91 x 2.44 28 12.36
ILL1B0016048 16 0.061 1.56 4 x 8 1.22 x 2.44 36.8 12.36
ILL1B0016310 16 0.061 1.56 3 x 10 0.91 x 3.05 35 12.36
ILL1B0016410 16 0.061 1.56 4 x 10 1.22 x 3.05 46 12.36
ILL1B0018038 18 0.048 1.22 3 x 8 0.91 x 2.44 23 9.94
ILL1B0018048 18 0.048 1.22 4 x 8 1.22 x 2.44 29.6 9.94
ILL1B0018310 18 0.048 1.22 3 x 10 0.91 x 3.05 28 9.94
ILL1B0018410 18 0.048 1.22 4 x 10 1.22 x 3.05 37 9.94
ILL1B0020038 20 0.035 0.892 3 x 8 0.91 x 2.44 17 7.25
ILL1B0020048 20 0.035 0.892 4 x 8 1.22 x 2.44 21.6 7.25
ILL1B0020310 20 0.035 0.892 3 x 10 0.91 x 3.05 21 7.25
ILL1B0020410 20 0.035 0.892 4 x 10 1.22 x 3.05 27 7.25
ILL1B0022038 22 0.028 0.72 3 x 8 0.91 x 2.44 14 6.18
ILL1B0022048 22 0.028 0.72 4 x 8 1.22 x 2.44 18.4 6.18
ILL1B0022310 22 0.028 0.72 3 x 10 0.91 x 3.05 17 6.18
ILL1B0022410 22 0.028 0.72 4 x 10 1.22 x 3.05 23 6.18
ILL1B0024038 24 0.025 0.64 3 x 8 0.91 x 2.44 11 5.1
ILL1B0024048 24 0.025 0.64 4 x 8 1.22 x 2.44 15.2 5.1
ILL1B0024310 24 0.025 0.64 3 x 10 0.91 x 3.05 14 5.1
ILL1B0024410 24 0.025 0.64 4 x 10 1.22 x 3.05 19 5.1
ILL1B0026038 26 0.018 0.455 3 x 8 0.91 x 2.44 8.5 3.76
ILL1B0026048 26 0.018 0.455 4 x 8 1.22 x 2.44 11.2 3.76
ILL1B0026310 26 0.018 0.455 3 x 10 0.91 x 3.05 11 3.76
ILL1B0026410 26 0.018 0.455 4 x 10 1.22 x 3.05 14 3.76
