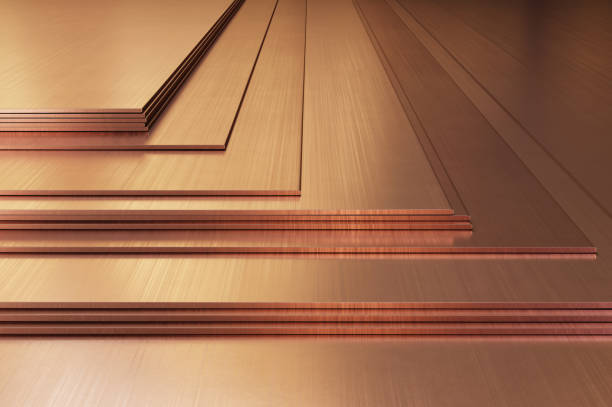

Lamina de Cobre

Aleación: C-1100

Norma: ASTM B152

Temple: Medio Duro

Largo: 3.66 mts= 144"

Ficha Técnica AL C-1100
Clave Producto
Calibre
(BWG)
Calibre
(Inch)
Calibre
(mm)
Dimensiones
(metros)
Peso aprox
(por hoja)
Peso aprox
(por m2)
CL0014038
14
0.083
2.1082
0.91 x 2.44
41.896
18.79
CL0014310
14
0.083
2.1082
0.91 x 3.05
52.369
18.79
CL0016038
16
0.065
1.651
0.91 x 2.44
32.81
14.715
CL0016310
16
0.065
1.651
0.91 x 3.05
41.02
14.715
CL0018038
18
0.049
1.2446
0.91 x 2.44
24.734
11.093
CL0018310
18
0.049
1.2446
0.91 x 3.05
30.917
11.093
CL0020038
20
0.035
0.889
0.91 x 2.44
17.6
7.923
CL0020310
20
0.035
0.889
0.91 x 3.05
22.082
7.923
CL0022038
22
0.028
0.7112
0.61 x 2.44
9.423
6.339
CL0022310
22
0.028
0.7112
0.91 x 2.44
14.134
6.339
CL0024038
24
0.022
0.5588
0.61 x 2.44
7.41
4.98
CL0024310
24
0.022
0.5588
0.91 x 2.44
11.104
4.98
CL0026038
26
0.018
0.4572
0.61 x 2.44
6.057
4.075
CL0026310
26
0.018
0.4572
0.91 x 2.44
9.086
4.07
CP01/4038
1/4
0.25
6.35
0.91 x 2.44
12.121
56.596
CP01/4310
1/4
0.25
6.35
0.91 x 3.05
157.738
56.596
CP01/8810
1/8
0.125
3.175
0.91 x 3.05
78.869
28.298
CP01/8838
1/8
0.125
3.175
0.91 x 2.44
63.095
28.298
CP3/16038
3/16
0.188
4.7625
0.91 x 2.44
94.895
42.56
CP3/16310
3/16
0.188
4.7625
0.91 x 3.05
118.619
42.56
CP3/32038
3/32
0.094
2.3825
0.91 x 2.44
47.447
21.28
CP3/32310
3/32
0.094
2.3825
0.91 x 3.05
59.309
21.28
CP5/32038
5/32
0.156
3.97
0.91 x 244
78.743
35.316
CP5/32310
5/32
0.156
3.97
0.91 x 3.05
98.429
35.316
